2A6

Sensibly equivalent to:
A4006B CV1769 PH2A6 UZ2A6

Extras ▼



The 2A6 double diode triode is designed for detector and first audio stage in radio receivers made for the American domestic market. The heater voltage of 2.5V was the original (late 1920s) standard for American indirectly-heated AC mains valves.
Later variants were the 75 with a 6.3 Volt heater and the 6B6G with 6.3 volt heater and IO base.

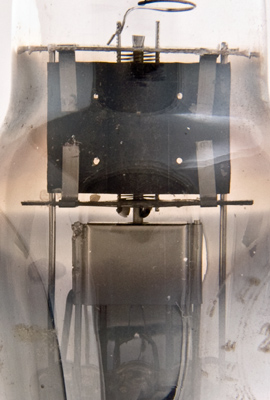

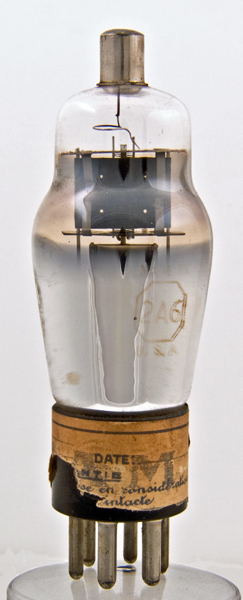

The valve has a common cathode assembly, seen running vertically through the centre of the valve. The signal diode anodes are the bright plates seen in the centre of the envelope. Each side is insulated and forms a diode anode. The top of the electrode structure is the triode. The anode cavity is blackened.

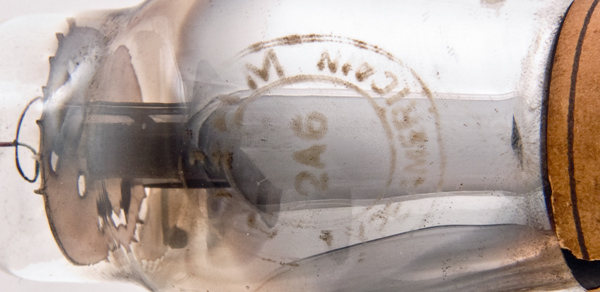

The valve carries the ADZAM brand of RCA and also a paper band around the base showing that it was imported into France.
The classic envelope is 38 mm in diameter and, excluding the UX6 base pins, is 100 mm tall.
References: Datasheet, 1040, 1043 & 3002. Type 2A6 was first introduced in 1933.



Pin Connections
UX6
1
2
3
4
5
6
tc
h
a
a(d2)
a(d1)
k
h
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.5
0.8
250
-1.35
0.4
91k
1.1
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 15, 2013.
