12AU7A

Sensibly equivalent to:
7030 CV4003 M8136
See also:
Pin Compatible Double Triodes

Extras ▼



The 12AU7A was designed as a pair of general purpose voltage amplifier triodes. Two independent valves exist within the envelope.

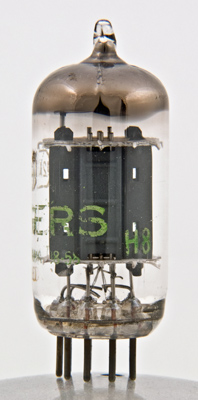

The anode is formed into a rectangular shell with heat radiating side wings.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 47 mm tall.
Reference: Datasheet. Type 12AU7A was first introduced in 1956.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 23, 2013.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(2) pin:2.g1(2) pin:3.k(2) pin:4.h pin:5.h pin:6.a(1) pin:7.g1(1) pin:8.k(1) pin:9.hct
