6GW8

Sensibly equivalent to:
CV8297 ECL86
See also:
A Low Cost Amplifier

Extras ▼

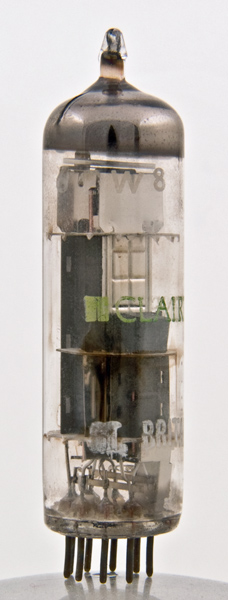

The 6GW8 was one of the last audio triode output pentode valves designed. Uses were in domestic radio and audio equipment. Normally in single ended output stages for radiograms and tape recorders. The design proved popular in low cost stereo systems and was made by several companies, this exhibit being labeled Clairtone.

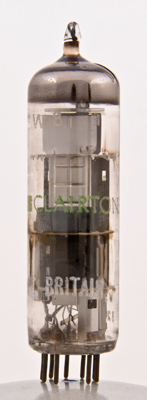

Clairtone is not a name associated with the UK so the made in Britain wording indicates the Clairtone were buying them in and judging by the top of the envelope Mullard were supplying.

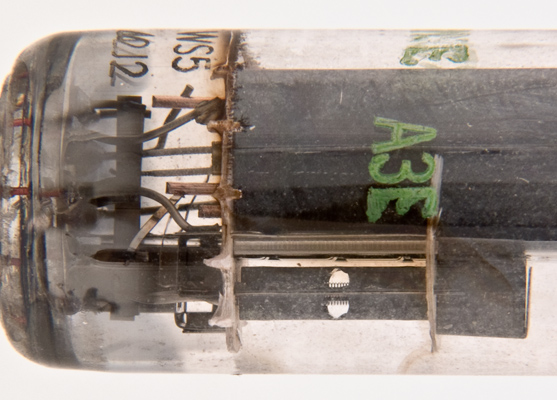

The triode section looking through the carbonised anode to the grid within.
The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 70 mm tall.
References: Data-sheet, 1040 & private communication. Type 6GW8 was first introduced in 1961. See also 1961 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k(t)
g2
h
h
a
k,g3,s
g1
a(t)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.7
250
-1.9
1.2
62k
1.6



Absolute Maximum Operating Conditions
Pentode
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
250
250
-7
36
6
48k
10
4W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
