7B8

Sensibly equivalent to:
VT-208
See also:
Pentagrid Converters - 7S7 Advert, November 1948

Extras ▼



The 7B8 is a heptode or Pentagrid converter. The Pentagrid is a self oscillating mixer with the triode oscillator being formed between the common cathode and grid two. In many such valves the second grid is formed from just the two support rods.
The loctal series can normally be matched to similar valves on octal bases. In this case the appropriate valve to compare it with is the 6A8.
The outer wire grids have a narrow pitch.

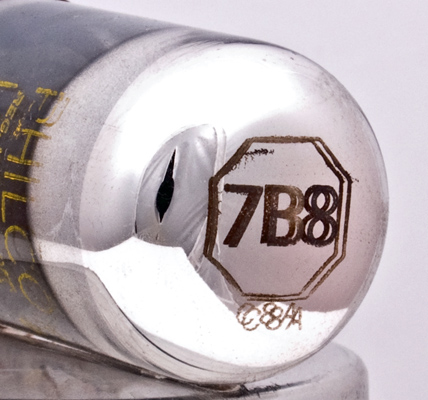

The identification is etched into the top of the envelope.

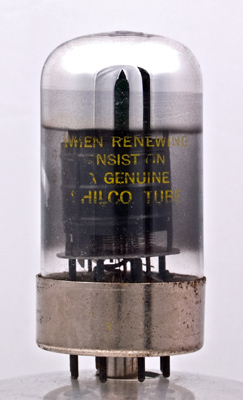

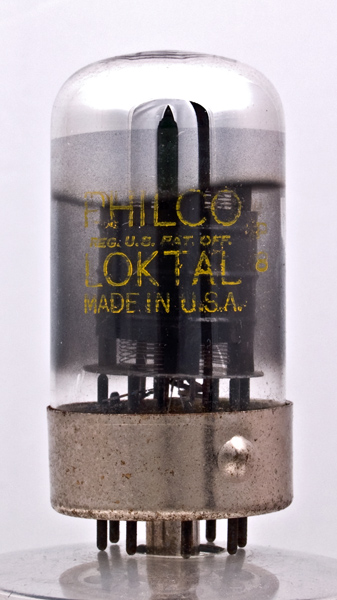

The wide glass tube envelope is 29 mm in diameter, and excluding the B8B base pins is 56 mm tall.
References: Data-sheet & 1043. Type 7B8 was first introduced in 1939. See also 1939 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
g1
g3,g5
g4
k
h



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
6.3
0.3
300
100
-0
3.5
1.3
0.36M
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 28, 2013.
