6BY7

Sensibly equivalent to:
6F19 6F26 CV1375 EF85 W719
See also:
Valves and their Habits

Extras ▼



The 6BY7 is a VHF varible μ pentode and is the counterpart to the EF80 straight RF pentode. Clearly this places the valve in a superhet context with AGC applied to the RF and IF sections in VHF/AM radio receivers and VHF television IFs.

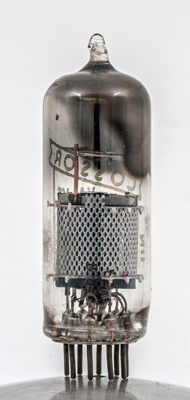

The pentode section is considerably smaller than the envelope. The top half being given over to the getter.

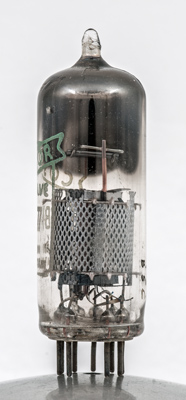

The visible mesh is the screen. Other parts of the screening can be seen above and below the mica supports. Also there is a metal plate that drops to the base and covers the centre of the glass.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 58 mm tall.
References: Datasheet & 1040. Type 6BY7 was first introduced in 1952.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
h
h
s
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-2.0
10.0
2.5
0.5M
6.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 13, 2017.
