ATS25

Sensibly equivalent to:
807 CV1374 VT60A
See also:
Beam Tetrodes and the 807

Extras ▼



The classic 807 beam tetrode designated as a military valve. The ceramic base offers better insulation in humid conditions or at altitude.
The parameters given are for single ended use. When used in a class AB1 as a push pull pair with 600 volts on the anode an output power of 65 Watts was normal.

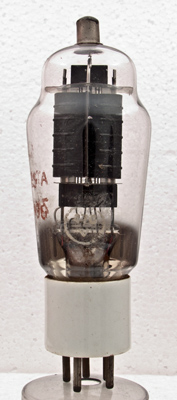

The anode side view with flange facing forward.

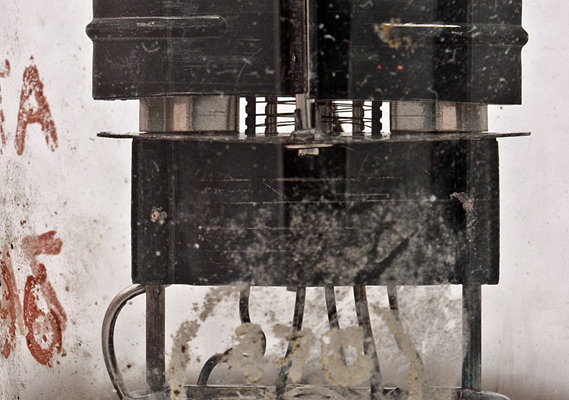

The grids and beam plates can be seen below the anode.
The classic envelope is 50 mm in diameter, and excluding the UX5 base pins is 131 mm tall.
References: Datasheet & 1040.



Pin Connections
UX5
1
2
3
4
5
tc
h
g2
g1
k
h
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
6.3
0.9
300
250
-14
83
8
20k
6.5
6.7W



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.9
600
250
-45
100
7
3.5
0.2W
25W
40W
60
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 13, 2013.
