R2

Sensibly equivalent^¶ to:

1867 43IU 442BU A11B A11D CV3759 DW3 DW4/350 IW4-350 MU12 MU14 R42 R42 U14 UU3 UU4 UU5 UU60/250 UU60/250

See also:

Brimar 15D1, 9D2, 11D3, 10D1, 4D1, 7D3, 7D6, 7D8, 7A3, R2 & 1D5 Advert

Extras ▼

Brimar From UKµG Members Other R2 exhibits

The R2 full wave rectifier from Brimar is a standard design with a 350 Volt 120 mA rating, it has many equivalents.

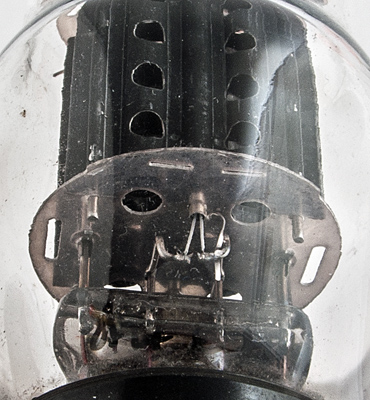

The Brimar identification and anodes held between mica sheets. The blackened anode sheets have holes either side of the central working cavity.

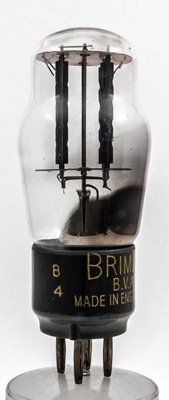

The anodes seen side on. The vertical rods in the centre each connect to one anode.

The insulated heater of one section. The cathode tube connects to one side of the heater.

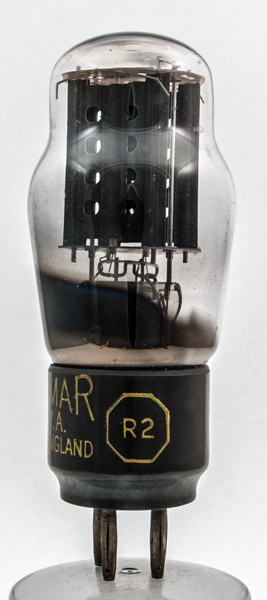

The classic envelope is 44 mm in diameter, and excluding the B4 base pins is 98 mm tall.

References: Data-sheet & ¹⁰⁴³. Type R2 was first introduced in 1932. See also 1932 adverts.

Pin Connections

B4	1	2	3	4
	a(2)	a(1)	h,k	h

Absolute Maximum Operating Conditions^¶

Rectifier	Vh	Ah	Va	mAa
	4.0	2.0	350	120

Thanks to Frank Philipse for supplying the above PDF datasheet.
