PCL805Sensibly equivalent¶ to:
|
|
|
|

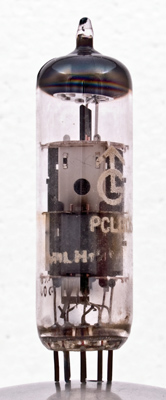

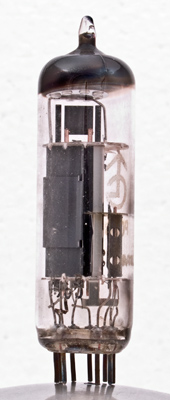

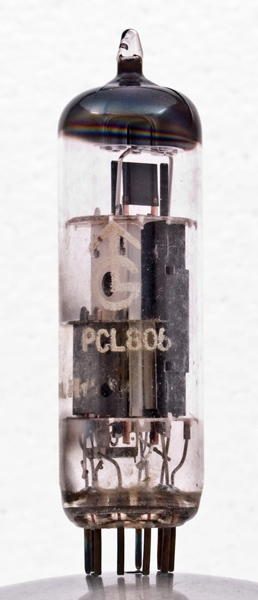

The PCL805 triode pentode was purpose designed as a domestic television receiver frame output stage for monochrome sets. This example carries the brand name of Granada a television production company in the UK who also operated a chain of television rental shops in the era of expensive and unreliable televisions. As is common with TV valves it is designed to operate at a relatively low voltage and high current. The beam tetrode has a quoted load resistance of 4,000 Ohms.The literature gives ratings for audio service but the PCL86 was the normal audio stage valve.The small triode section in the foreground has a bright electrostatic screen between it and the large pentode power section.The pentode section has a cooling fin at the top of the copper control grid support rods. The holes in the side of the triode anode reveal the grid, also wound on copper supports.The thin glass tube envelope is 20 mm in diameter and, excluding the B9A pins is 70 mm tall.References: Data-sheet & 3002. Type PCL805 was first introduced in 1968. See also 1968 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | a(t) | g1(t) | k(t) | h | h | a | g2 | k,s,g3 | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pout |
| 18 | 0.3 | 170 | 170 | -15 | 41 | 2.3 | 25k | 7.5 | 3.4W |
|
Absolute Maximum Operating Conditions¶
| Va | Vg | mAa | ra | gm |
| 100 | 0 | 10 | 8300 | 1.4 |
|
