VT-211Sensibly equivalent¶ to:See also:
|
|
|

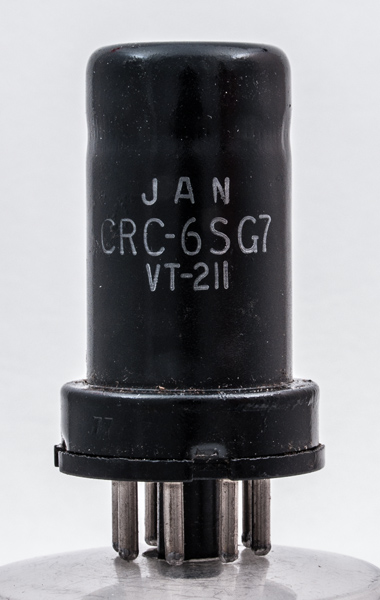

The type 6SG7, USA service designation VT-211, was designed for wideband RF and IF amplification and has a relatively high gm value to ensure a good gain-bandwidth product.The valve has dual cathode lead-outs to minimise the risk of self-oscillation due to parasitic coupling between input and output circuits caused by common impedance in series with the cathode.![](../pics/abh0174a.jpg)

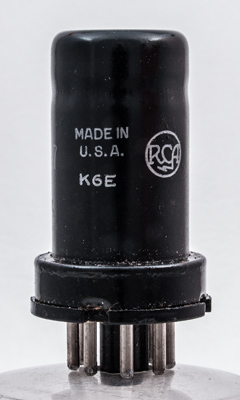

The RCA logo on the other side of the can.The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 51 mm tall.References: Data-sheet, 1040 & 1043. Type VT-211 was first introduced in 1940. See also 1940 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) m | h | k | g1 | k | g2 | h | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 150 | -2.5 | 9.2 | 3.4 | 1M | 4 |
|
Updated April 21, 2015.
|
|
