CV2180

Sensibly equivalent to:
19H4 VX6095

Extras ▼

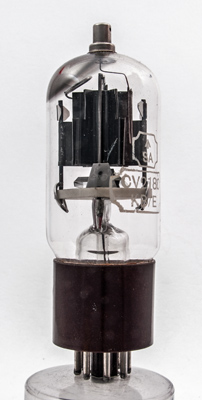

The CV2180 is a half wave rectifier based on the VX6095. The equivalent Mazda 19H4 was introduced in 1948 and improved in 1951. It is indirectly heated and uses a 2.5 Volt heater, the original American standard for AC heated valves.

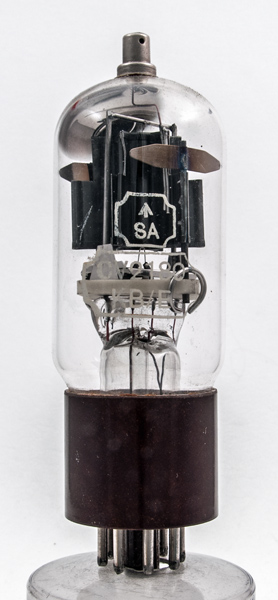

The folded anode is made to have six spikes around the central core to increase the radiating area for maximum cooling. The high voltage working, up to 20 kV PIV, requires a solid ceramic support for the electrodes.
The current rating is low and the heater wire is of small diameter.

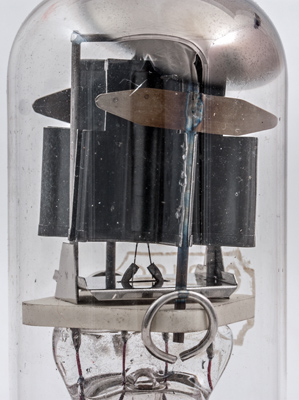

The ceramic support mounted directly on the pinch. Note the anode folds and the central cylindrical working space.

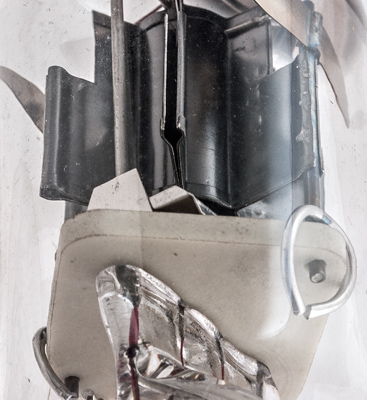

This image shows the geometry very well. The heater is twisted within the cathode tube.
The wide glass tube envelope is 40 mm in diameter, and excluding the IO base pins is 105 mm tall.
Reference: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
-
-
-
-
h,k
-
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.5
1.7
8,300
30.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December17, 2018.
shape:wide.glass.tube construction:pinch type:rectifier.hw age:1940.1950 base:io heater:2.5v pins:8 pin:1.- pin:2.h pin:3.- pin:4.- pin:5.- pin:6.- pin:7.h.k pin:8.- pin:tc.a
