CV2203

Sensibly equivalent to:
FX215 GHT1
See also:
English Electric Hydrogen Thyratrons Advert

Extras ▼



The CV2203 is a hydrogen thyratron pulse modulator. The peak anode voltage is 16 kV and the peal current is 200 A. The prototype was the English Electric FX215.

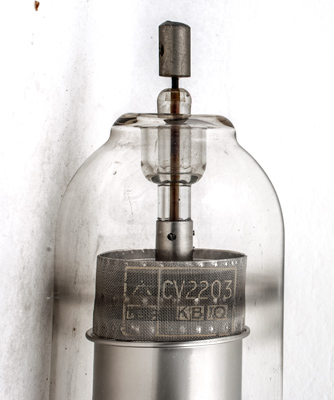

The KB/Q identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Q identifies the maker as English Electric Valve Co., Chelmsford.

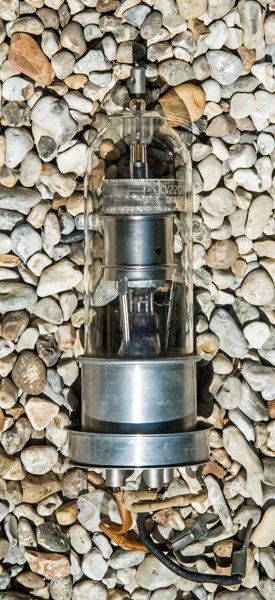

The CV2203 was too big for the valve studio and initially was photographed outdoors.

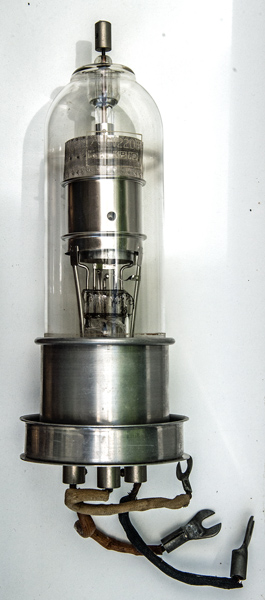

The anode is fixed only to the top cap and the connections are shielded within a glass tube. The anode itself is enclosed within the mesh shield.

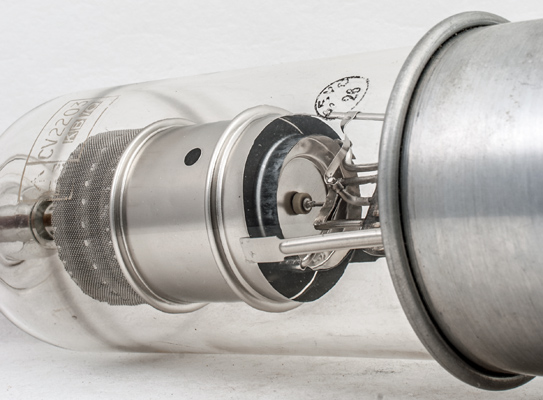

The working electrodes are heavily shielded.

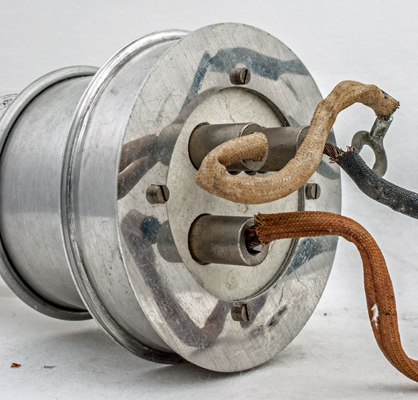

The base leads are multi stranded copper wires ending in spade connectors. Black = heater and cathode, yellow = heater and white is for the grid.
The wide glass tube envelope is 70 mm in diameter, and excluding the base leads is 260 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
2.5
27.5
16,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
