394A



Extras ▼

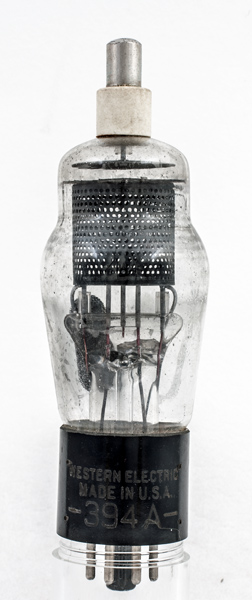

The 394A is a mercury vapour thyratron designed to be used as a controlled rectifier.
The anode is a flat plate at the top that is fixed only to the top of the envelope. Inside the screen is the helical filament and control electrode. Near the pinch is a mesh mercury reservoir.

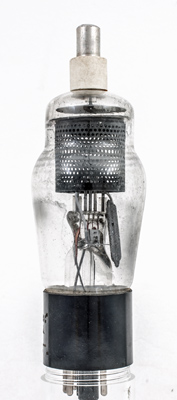

A clearer view of the mesh.
Paper label from the end flap of the box.
The rest of the label attached to the side of the plain corrugated card box.
The classic envelope is 45 mm in diameter, and excluding the IO base pins is 128 mm tall.
Reference: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
f
-
g1
-
-
f
-
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
2.5
3.25
1250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 29, 2018.
shape:classic construction:pinch type:thyratron age:1950.1960 base:io heater:2.5v pins:8 pin:1.- pin:2.f pin:3.- pin:4.g1 pin:5.- pin:6.- pin:7.f pin:8.- pin:tc.a
