GC10B

Sensibly equivalent to:
CV2271 GC10B/S
See also:
Gas Filled Counting Tubes

Extras ▼

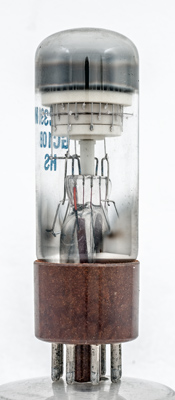

The GC10B is a Dekatron counting tube where the application of a pair of input pulses causes the neon discharge to move around the cathodes in the pin circle. The position of the glow is the readout. At the end of a revolution the tube generates an output pulse to drive another tube. The GC10B can accept pulses up to 4,000 per second.
The stacked ceramic discs hold the electrodes.

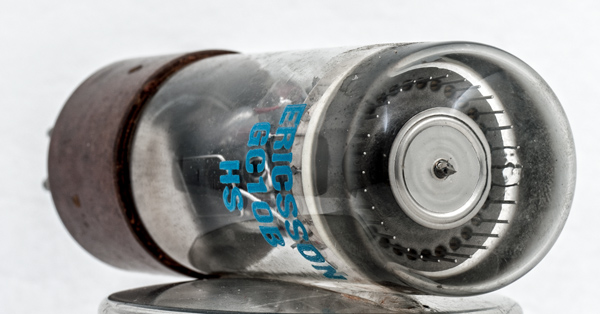

The central anode with cathodes and guides around the circumference of the outer circle.

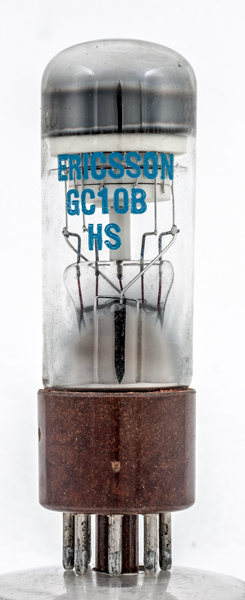

The end window envelope is 29 mm in diameter, and excluding the IO base pins is 86 mm tall.
Reference: Datasheet & article above.



Pin Connections
IO
1
2
3
4
5
6
7
8
k
-
gu1
a
gu2
-
k(0)
-



Absolute Maximum Operating Conditions
Indicator
Va
350
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 29, 2018.
shape:end.window construction:pinch type:counter/indicator age:1950.1960 base:io pins:8 pin:1.k pin:2.- pin:3.gu1 pin:4.a pin:5.gu2 pin:6.- pin:7.k(0) pin:8.-
