16A5

Sensibly equivalent to:
30P16 N154 N329 PL82
See also:
Valves and their Habits

Extras ▼



The 16A5 was designed for low frequency power output either as a television frame output valve or for audio use.
This valve would normally be found in audio stages of television receivers. A pair used in push pull class AB1 would deliver 9 Watts at 4 % distortion. The peak to peak grid signal voltage would be 26 Volts and the shared anode load would be 4,000 Ohms.

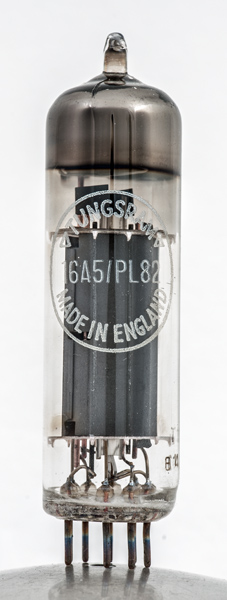

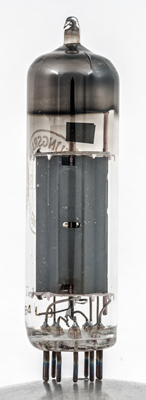

The anode covers almost all of the internal structure. The control grid heat sinking fins are visible at the top. The wire grids can be glimpsed through the hole in the anode wall.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 70 mm tall.
References: Datasheet & 1040



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
-
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
16.5
0.3
170
170
-10.4
53
10
20,000
9.0
4W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 09, 2018.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b9a heater:300ma pins:9 pin:1.- pin:2.g1 pin:3.k.g3 pin:4.h pin:5.h pin:6.ic pin:7.a pin:8.ic pin:9.g2
