The CV2158 is a high power hydrogen thyratron or gas modulator for radar transmitters. The valve is equipped with flying leads that here are tucked into the base.
The serial number of this thyratron is 1416.
The KB/Z identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Z identifies the maker as MO Valve Company, Hammersmith.
The braided leads in side the base.

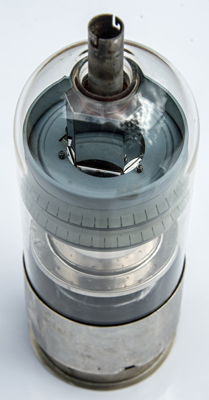

The bayonet anode connection. The inner details are obscured.

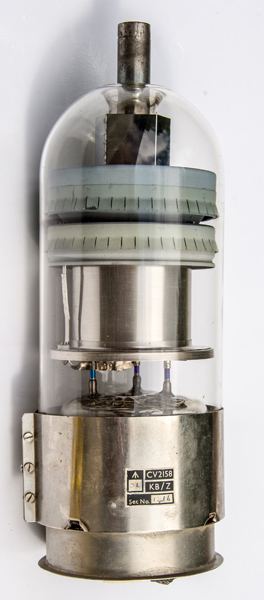

The wide glass tube envelope is 92 mm in diameter and, including the base, is 277 mm tall.
Reference: Data-sheet. Type CV2158 was first introduced in 1955. See also 1955 adverts.



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
mAa
2.5
38
14,000
4,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
