5FP7

Sensibly equivalent to:
CV718

Extras ▼



The 5FP7 is a magnetically focussed and deflected flat faced cathode-ray tube. The design purpose is as a radar display. The screen colour is short persistence blue.

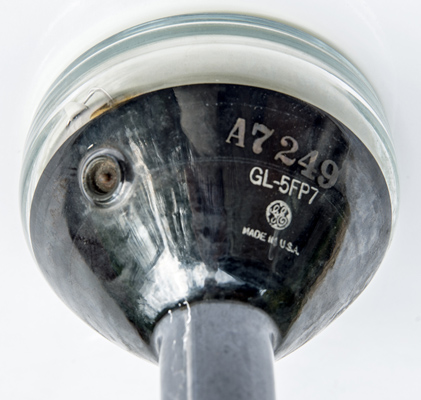

The GE logo and GE type designation of GL-5FP7. The tube was made in America. The side contact is to the final anode or accelerator.

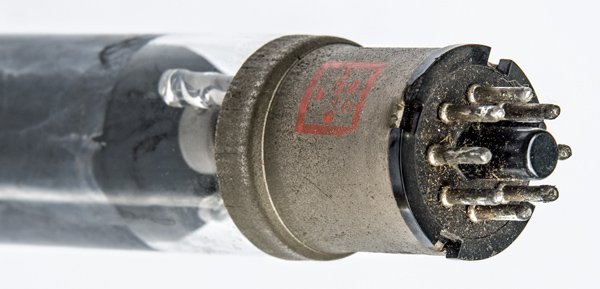

The IO base cap.

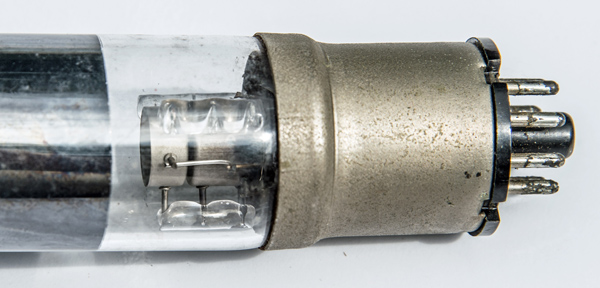

As this CRT is magnetically focussed and deflected the gun is a relatively small set of cylinders. The critical separations are maintained by fixing the supports into glass rods.

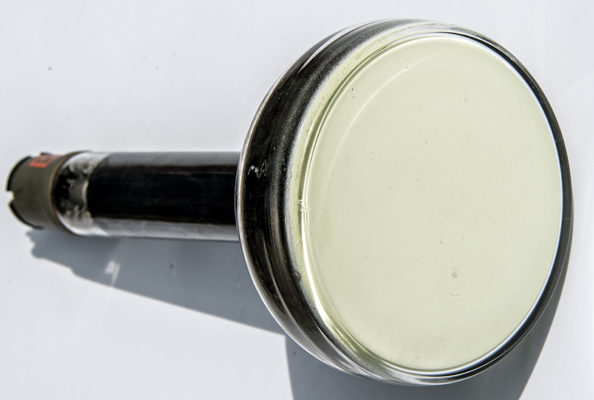

The flat face of the tube has a phosphor diameter of 110 mm.

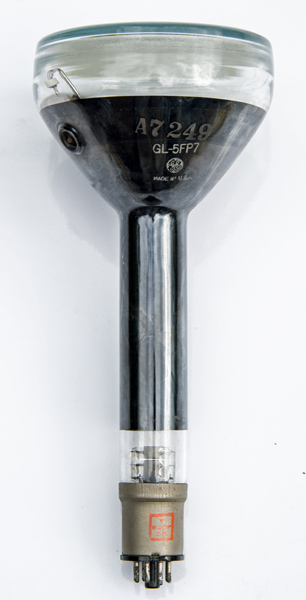

The end window envelope is 35 mm in diameter and, excluding the IO base pins, is 268 mm tall.
Reference: Data-sheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
g2
nc
g1
nc
k
h
a



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
6.3
0.6
8,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
