35T

Sensibly equivalent to:
CV668 DET18
See also:
CV668 short entry

Extras ▼

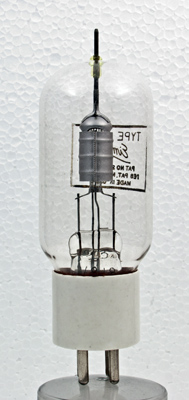

The 35T is a directly heated power triode for use at up to 100 MHz, at maximum input one 35T can produce up to 235 Watts of RF. The anode is small but can dissipate 50 Watts.
The 24G is constructed in a similar way.

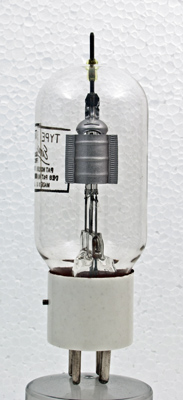

The anode with the cage grid extending above and below. The control grid can dissipate 15 Watts.

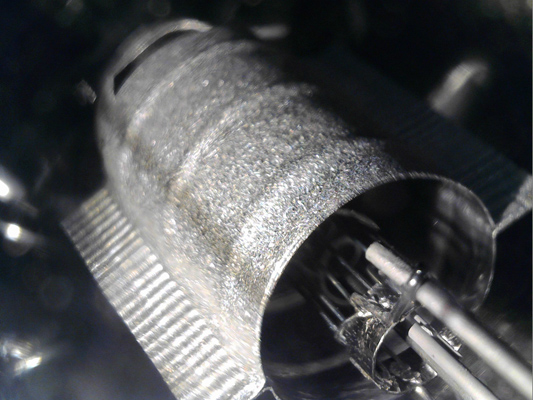

The anode is circular as the electron flow is through a cylindrical cage of grid wires.
The wide helix is present to hold the grid cage in shape. The small inner helix is the filament.

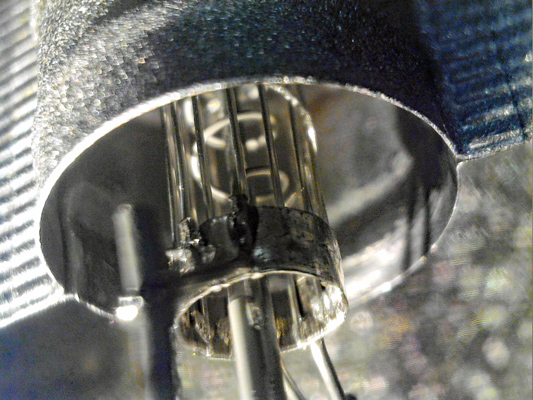

Here the lower ends of the grid wires can be seen intheir support ring. These are thick wires for a substantial job.
The wide glass tube envelope is 45 mm in diameter, and excluding the UX4 base pins is 122 mm tall.
Reference: Datasheet. Type 35T was first introduced in 1951.



Pin Connections
UX4
1
2
3
4
tc
f
-
g1
f
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
5.0
3.9
2,000
-
150
2.85
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 06, 2015.
