AFX203

Sensibly equivalent to:
CV2868

Extras ▼



The AFX203 is a directly heated Xenon Thyratron. The heater voltage is the old American AC standard of 2.5 Volts. In use the filament glows orange.

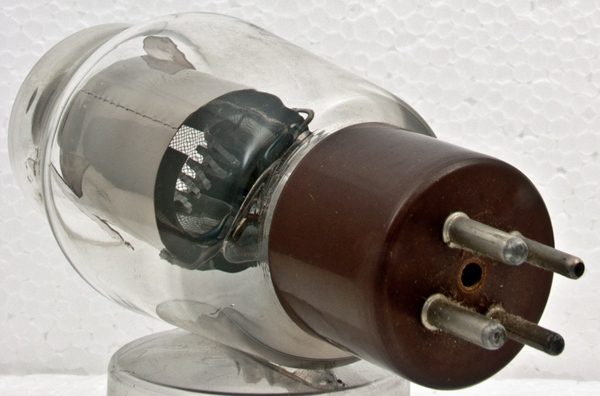

The inner curved plates are connected to the ribbon filament. The outer cylinder has the mesh grid set into the top.

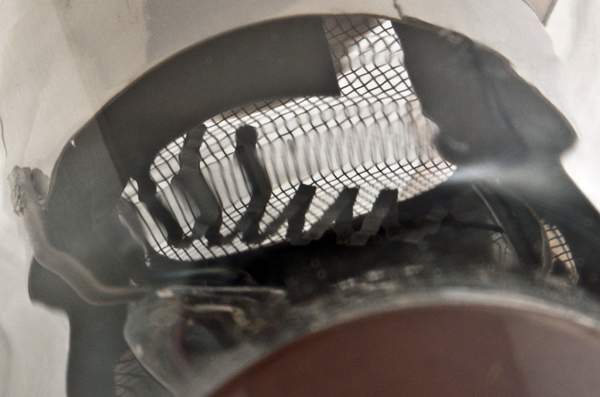

The filament appears distorted due to the curve of the glass.

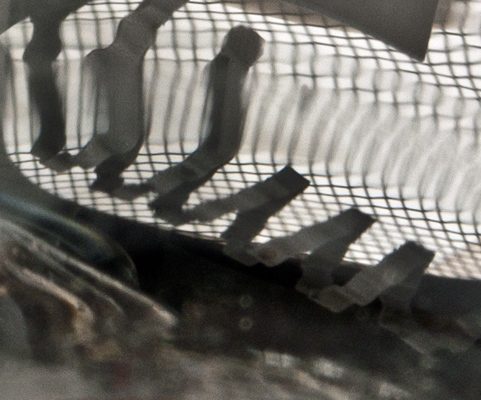

The filament can be seen to be corrugated to give strength and longer length and surface area.

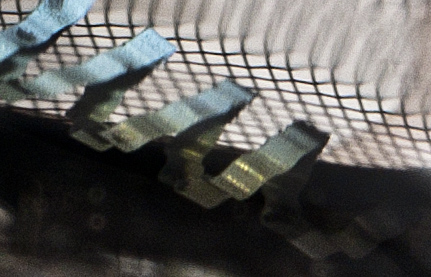

The filament with extra illumination.

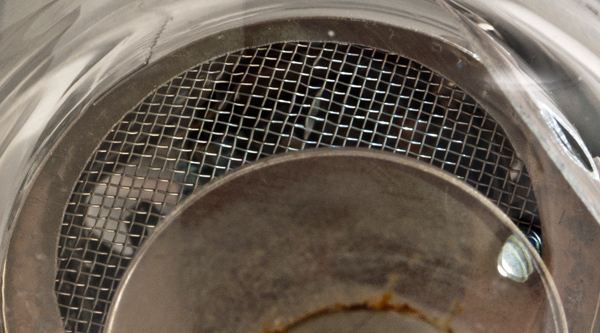

The mesh grid with the anode disc in the foreground.

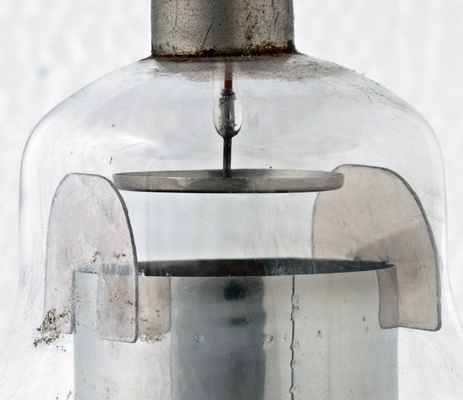

The anode dish and support held in a glass rod.

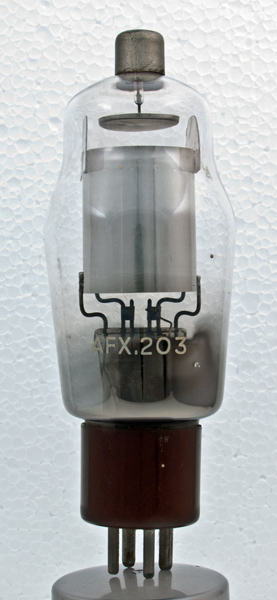

The classic envelope is 55 mm in diameter, and excluding the UX4 base pins is 139 mm tall.
Reference: Datasheet. Type AFX203 was first introduced in 1954.



Pin Connections
UX4
1
2
3
4
tc
f
-
g1
f
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
mAa
2.5
4.0
280
1,700
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 12, 2014.
