6N27P

Sensibly equivalent to:
ECC86

Extras ▼



This exhibit is a Russian version of the ECC86 double triode. The latter is very special high frequency double triode. At a time when AF power transistors were replacing valves but no VHF transistors were available the ECC86 was designed to operate directly from vehicle battery supplies for car radio applications alongside transistors.

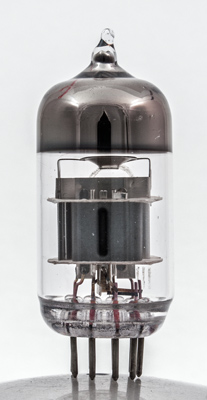

The two sections with the electrostatic screen in the centre.

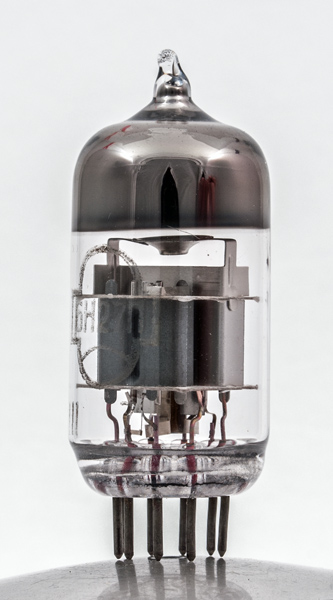

The active part of the anode is at the end of the depression seen in the image. The rest of the anode material is just support and heat sink.

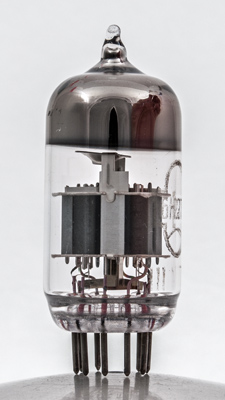

This image is from an ebay listing and shows the logo much clearer as well as the Cyrillic Type designation.
The Thin glass tube envelope is 22 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
Reference: Data-sheet



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.33
30
-1
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
