6CG7

Sensibly equivalent to:
6CG7EH
See also:
An Experimental 12AX7 - 12AU7 Audio Amplifier

Extras ▼



The 6CG7 is a general purpose medium μ double triode. Television receivers were a major user of the 6CG7 but use as an RC coupled amplifier is also discussed in the data-sheet. With a maximum anode dissipation of five Watts this would make a good replacement for the ECC82 in a small audio amplifier. Note that pin 9 is not connected and the 6.3 Volt heater supply connects to pins 4 and 5.

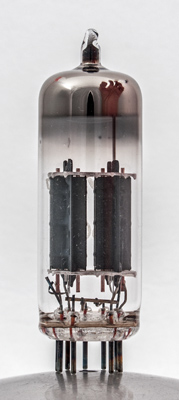

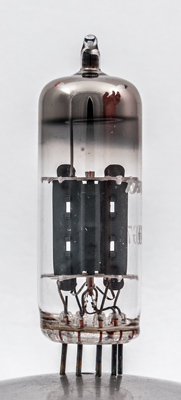

The side view of one anode. The flanges are in the centre of the working face.
The triode sections are 13 mm tall.

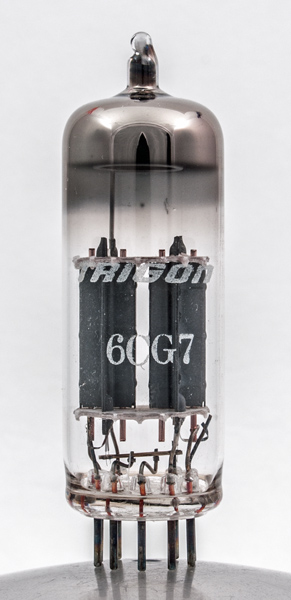

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 59 mm tall.
Reference: Data-sheet. Type 6CG7 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
nc



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.6
300
0
20.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 06, 2022.
