6146A

Sensibly equivalent to:
CV9839

Extras ▼

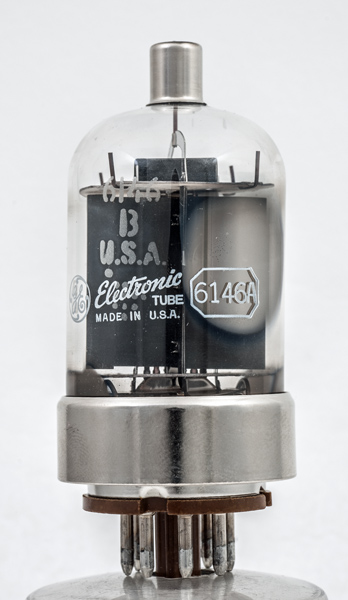

This exhibit is a 6146A transmitting beam tetrode from General Electric. The 6146A is interchangeable with the 6146 and for mobile transmitters has an ability to function well at reduced heater voltage. The final version was the 6146B with a very wide range of acceptable heater voltages. This exhibit has original etched lettering showing the Type designation as 6146B together with the later over-printing of 6146A.
The anode end view, the carbonated surface and flange in the centre of the working face assist heat loss by radiation. The base is a standard IO but the skirt is wider as the envelope is wider than a IO receiving valve.
The wide glass tube envelope is 38 mm in diameter and excluding the IO base pins, the valve is 80 mm.
References: Datasheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
k,bp
h
g2
k,bp
g1
k,bp
h
m
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pout
Pdiss
freq
f.max
6.3
1.25
600
150
-58
112
9
2.8
0.2W
52W
20W
60
175
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 22, 2017.
shape:wide.glass.tube construction:pinch type:beam.tetrode age:1950.1960 base:io heater:6.3v pins:8 pin:1.k.bp pin:2.h pin:3.g2 pin:4.k.bp pin:5.g1 pin:6.k.bp pin:7.h pin:8.m pin:tc.a
