4C35

Sensibly equivalent to:
CV1787 FX2505 PL435 XH8-100

Extras ▼



The 4C35 is a hydrogen thyratron designed for switching in-line modulator circuits of microwave radar. Other uses include induction heating and pulse modulation.
In essence this type of valve acts as a fast switch with low on resistance and momentarily connects a bank of charged capacitors across a magnetron and thus delivers a pulse of a high power for a few microseconds.

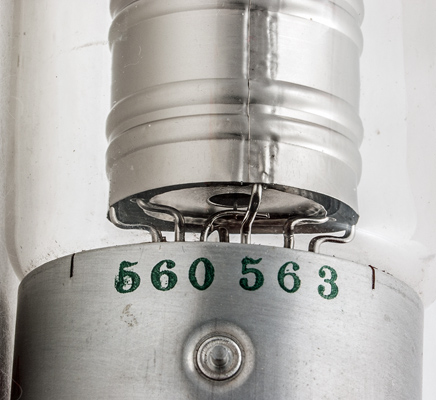

A serial number. The locating pip for the bayonet base can be seen on the right of the metal base skirt.

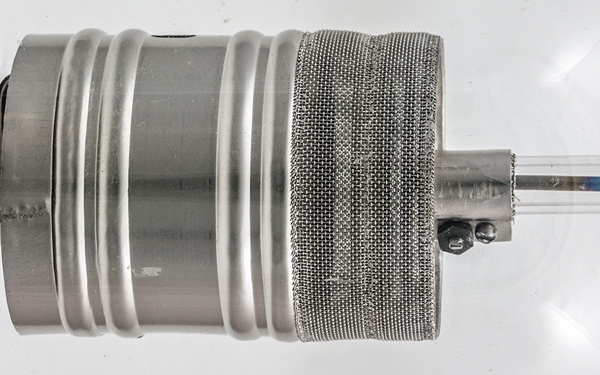

The shield with perforated top section. The anode disc is within and the anode connection is within a glass tube that the shield is clamped to.

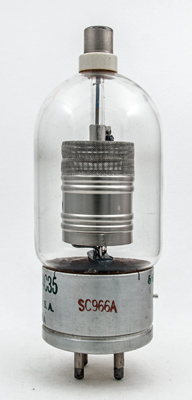

The lower electrodes and locating pip.

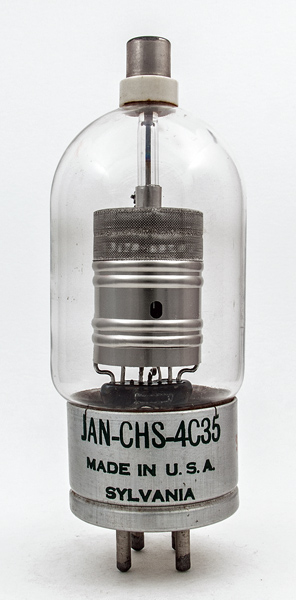

The wide glass tube envelope is 63 mm in diameter, and excluding the base pins is 150 mm tall.
References: Data-sheet. Type 4C35 was first introduced in 1954. See also 1954 adverts.



Pin Connections
1
2
3
4
tc
g1
h,k
h
k
a



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
6.3
6.0
2,500
Thanks to Frank Philipse for supplying the above PDF datasheet.
