W727Sensibly equivalent¶ to:See also:
|
|
|

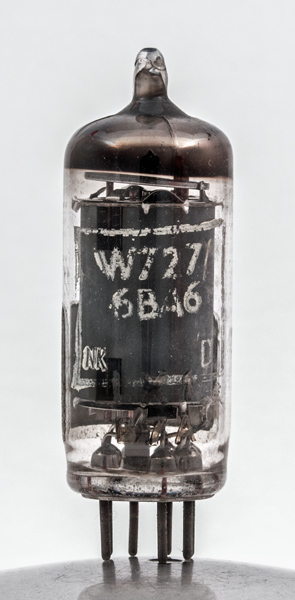

The W727 is a variable μ pentode for use at HF. Most often as an IF amplifier in superhet receivers. This GEC exhibit is also marked with the alternative Type designation of 6BA6. The 1954 data-sheet states that the W727 is the commercial equivalent of CV454.![](../pics/abp0023a.jpg)

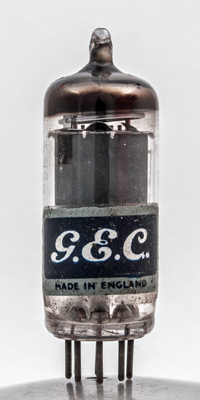

The GEC label.The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 47 mm long.References: Data-sheet & 1040. Type W727 was first introduced in 1954. See also 1954 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | g3,s | h | h | a | g2 | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 100 | -1 | 11 | 4.4 |
|
