6100

Sensibly equivalent to:
6C4WA CV4058

Extras ▼



The 6100 is a small special quality RF power triode for HF and low VHF working. It is equivalent to the 6C4WA. The CV equivalent is the Type CV4058.

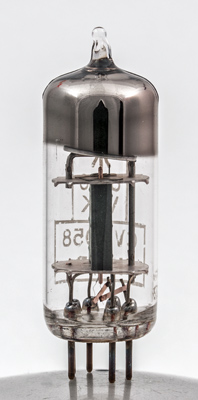

The box anode with ribs pressed into it for additional rigidity.

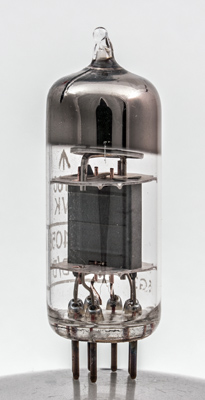

The anode side view. The grid supports are copper. The heater is connected with tape and can be seen to be coiled within the ceramic coating.

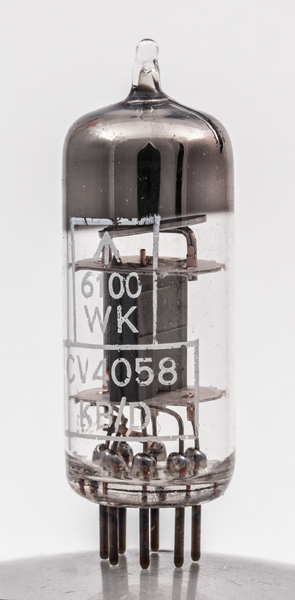

The thin glass tube envelope is 18 mm in diameter, and excluding the base pins is 47 mm tall.
References: Datasheet & 1040 Type 6100 was first introduced in 1956.



Pin Connections
B7G
1
2
3
4
5
6
7
a
ic
h
h
a
g1
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
gm
Pdriv
Pout
Pdiss
freq
f.max
6.3
0.15
250
10.5
2.2
0.35W
5.5W
5W
70
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 26, 2014.
