EL84

Sensibly equivalent to:
6BQ5 6P15 CV2975 N709
See also:
5-10 Amplifier - Transformerless Amplifiers

Extras ▼

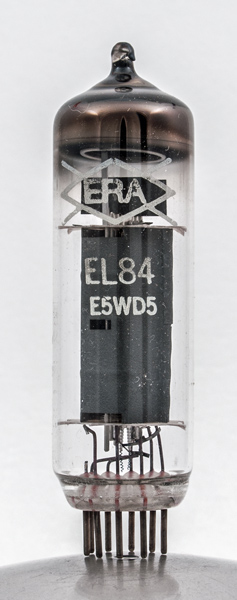

This EL84 has the ERA logo of Edicron. The EL84 output pentode was introduced by Mullard in 1954. To demonstrate its use and quality the Mullard applications lab produced an amplifier design. The now classic 5-10 high quality audio amplifier.
Looking through the end wall of the anode the grids can be seen as all wire, thus this is a true pentode.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 70 mm tall.
References: Datasheet & 1040. Type EL84 was first introduced in 1953.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
Pdiss
6.3
0.76
250
250
-7.3
48
5.5
6.7
2.2
12W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2016.
