PCL805

Sensibly equivalent to:
PCL85

Extras ▼



The PCL805 triode pentode was purpose designed as a domestic television receiver frame output stage for monochrome sets and on rare occasions (ITT CVC5 chassis) colour sets. As is common with TV valves it is designed to operate at a relatively low voltage and high current. The beam tetrode has a quoted load resistance of 4,000 Ohms.
The literature gives ratings for audio service but the PCL86 was the normal audio stage valve.

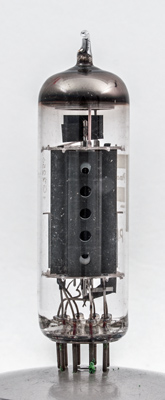

The third grid is the bright plate seen through the holes in the anode. This is a beam tetrode. The grid fins connect to the screen grid.
The small triode is seen on the left.

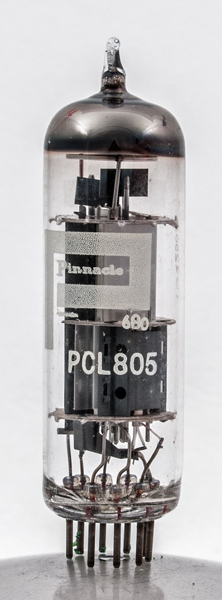

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A pins is 69 mm tall.
References: Datasheet & 3002. Type PCL805 was first introduced in 1968.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k(t)
h
h
a
g2
k,s,g3
g1



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
18
0.3
170
170
-15
41
2.3
25k
7.5
3.4W



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
100
0
10
8300
1.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
