EC157



Extras ▼

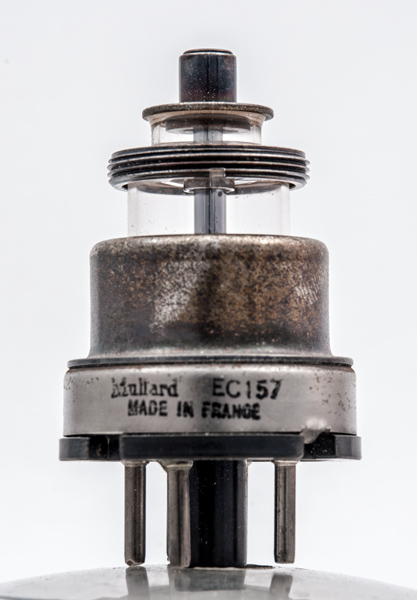

The EC157 lighthouse planar triode was designed to provide RF power in broadband microwave circuits. The circuit topography the EC157 was designed for was grounded grid. The grid sits across the width of the valve and the grid connection is fitted with a screw thread for direct fixing into a cavity based enclosure.

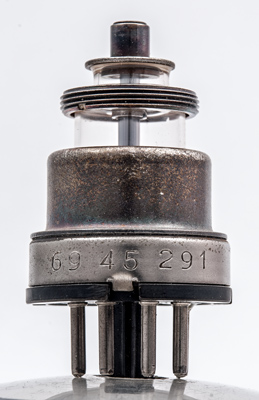

The base also has a number stamped into it.
The working area of the valve is very small with the flat cathode mounted close the control grid disc on one side and the flat base of the anode mounted on the other.
The thin glass tube envelope is 18 mm in diameter, and excluding the base pins is 43 mm tall.
Reference: Data-sheet. Type EC157 was first introduced in 1960. See also 1960 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
ic
h
k
nc
ic
nc
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
μ
6.3
0.735
180
-1.25
30
18
43
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 09, 2022.
