90CG

Sensibly equivalent to:
CV2133

Extras ▼



Mullard describe the 90CG as a gas filled photo cell, most sensitive to incandescent light sources and to infra-red radiation.
The maximum anode voltage is 90 V and pin four faces the direction of the incident light.
Caesium on oxidised silver is the active material and the cathode effective area is 3 sq cm. The dark current is 0.1 µA and the maximum current is 2 µA.

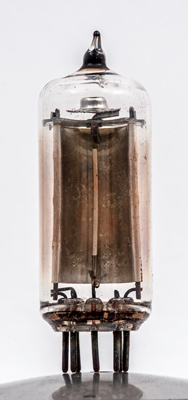

The cathode is shaped as a half cylinder.

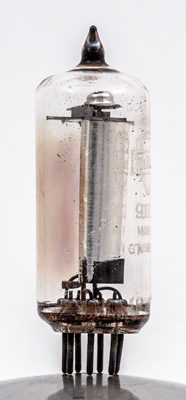

The anode is a single vertical rod.
Thanks to Stig Comstedt for sending the data-sheet.

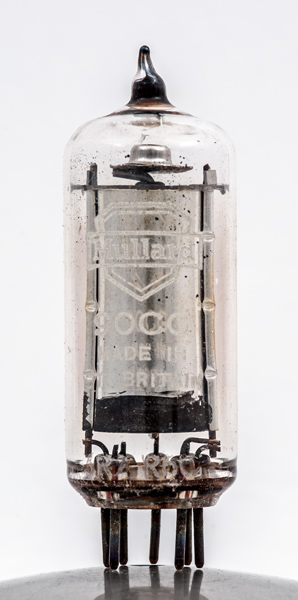

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
Reference: Data-sheet. Type 90CG was first introduced in 1955. See also 1955 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
nc
k
nc
a
nc
k
nc



Absolute Maximum Operating Conditions
Light Control
Vh
Ah
Va
nc
nc
90
PDF scanned from an original document held by the museum
