VR18

Sensibly equivalent to:
215SG CV1018 Z21

Extras ▼



The VR18 (later the CV1018) is a screened grid valve based on the Mazda 215SG.

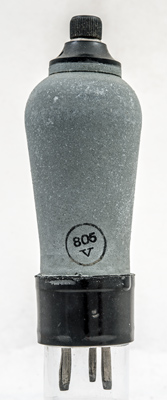

The reverse: plain zinc screening paint and maker code.

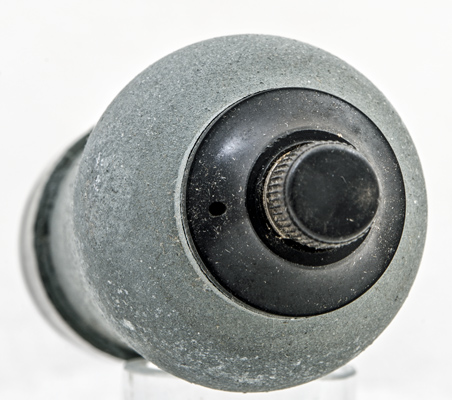

The screw top cap was not used after the mid 1930s.
References: Data-sheet & Data. Type VR18 was first introduced in 1935. See also 1935 adverts.



Pin Connections
B4
1
2
3
4
tc
g2
g1
f
f
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
μ
2.0
0.15
150
80
-1.5
7.0
-
0.3M
1.1
330
Thanks to Frank Philipse for supplying the above PDF datasheet.
