DT1336Sensibly equivalent¶ to:CBC1See also:
|
|
|

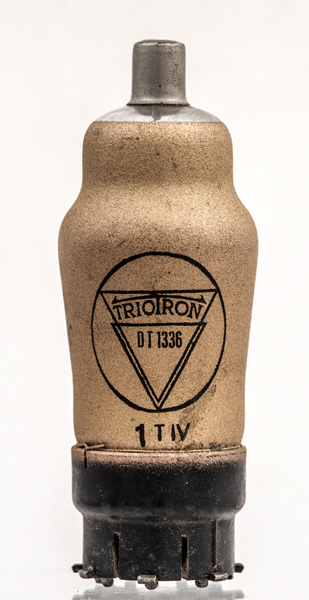

The DT1336 from Triotron is a double diode triode for use on series heater chains. The heater runs at 200 mA.The DT1336 is equivalent to the CBC1 - a Philips Type designation.Thrower gives the base as B7 plus top cap. This clearly is a Ct8 base and so two versions are likely to have been made.

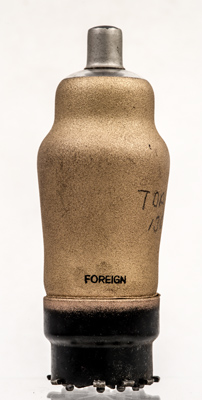

The reverse of the metallised envelope has the word Foreign. The gold zinc loaded paint points to a Philips involvement in Triotron.The classic envelope is 34 mm in diameter, and excluding the B4 base pins is 91 mm tall.Reference: Data-sheet. Type DT1336 was first introduced in 1935. See also 1935 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc |  m | h | h | k | a(d2) | a(d1) | nc | a | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa |
| 13 | 200mA | 250 | -7.0 | 4.0 |
|
PDF scanned from an original document held by the museum |
