EF42

Sensibly equivalent to:
CV3887 Z150
See also:
Stabilized Power Supplies - Olympia Show 1947 - Mullard EF42, ECC34 & EL38 Advert - Mullard EF42 as TV Frequency Changer Advert - EF42 Linear Oscilloscope Timebase Advert - Mullard EF42, Oscilloscope Input Stage Advert - Mullard EF42 as Wideband Oscilloscope Amplifier Advert - TV Timebase Circuit No. 1 Advert - TV Timebase Circuit No. 2 Advert

Extras ▼



The EF42 miniature high slope RF pentode is of an all glass construction and dates from 1947 and was first seen at the Olympia show that year. Mullard specify this device for use as an RF or an IF amplifier.

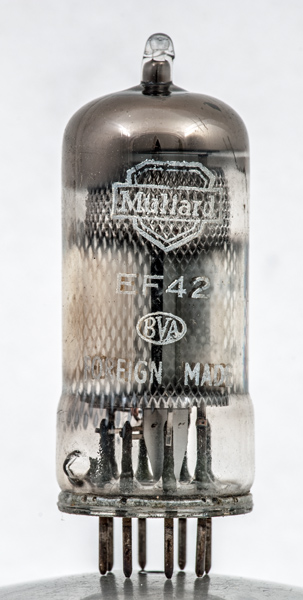

Thus all glass example has the base groove typical of Philips manufacture, and the envelope carries the words Made in Holland. Our other EF42 has the earlier construction of a metal skirt, with locating pip, over the all glass envelope. The first B8A valves featured a metal locating spigot.
The UF42 has identical characteristics but is fitted with a 100 mA heater for use in series heater chains.

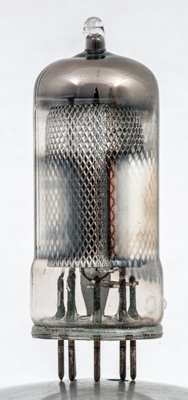

Little to be seen within.
The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 52 mm tall.
References: Data-sheet & 1040. Type EF42 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
s
g3
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.33
250
250
-2
10
2.3
0.44M
9.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 23, 2020.
