W2514

Sensibly equivalent to:
CV199 NT99
See also:
CV1256 short entry - CV199 short entry - CV1256 short entry

Extras ▼



The W2514 is a UK Navy code for a micropup triode more commonly known as NT99 and later the CV199. It was designed for 50 cm operation and with a maximum anode dissipation of 150 Watts. This Type was the most widely used of the micropup pulsed triodes.
It was used in the AMES11 600 MHz mobile ground radar used by the RAF. Fire control radar type 284 operating at 600 MHz and used by the Navy. For the 1941 Type 291 radar the modulator was the CV22. It was also used in the AI radar at 200 MHz.

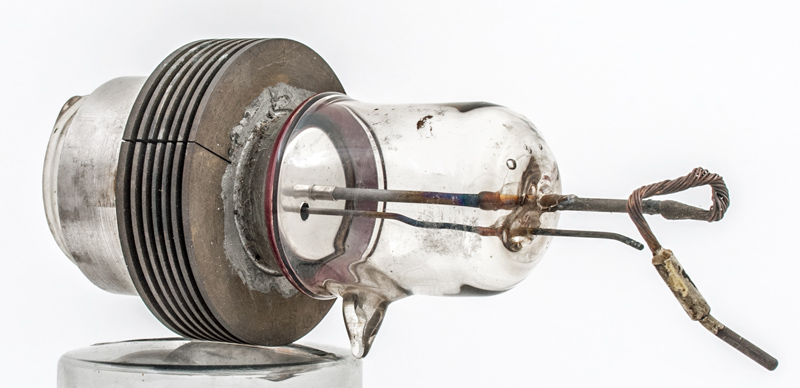

The construction is co-axial and the anode is finned to enable forced air cooling. The grid is connected via a depression in the envelope to the left of the picture.
See W5534 for full details.
The valve is 52 mm in diameter, and excluding the base pins, is 95 mm tall.
Reference: Datasheet. Type W2514 was first introduced in 1940.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
6.0
6.5
8,000
-31
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December26, 2019.
shape:co-axial construction:disc.seal.(glass) type:triode age:1940.1950 base: heater:6.0v pin:
