Z62

Sensibly equivalent to:
ARP21 CV1192 CV3838 NR79

Extras ▼



The Z622 is an indirectly heated HF pentode based on the M-OV Z62. The CV1192 was based on the Z62 as were the earlier names of Navy NR79 and Army ARP21.

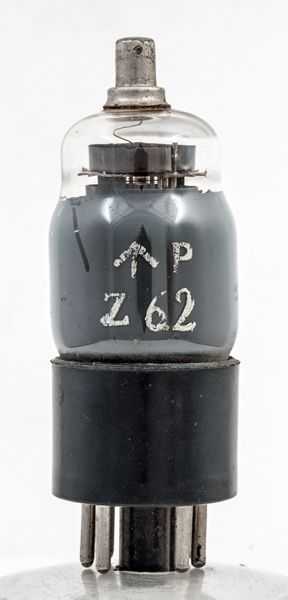

The envelope is coated internally making the internal structure invisible. The base cap carries the Marconi MWT logo.

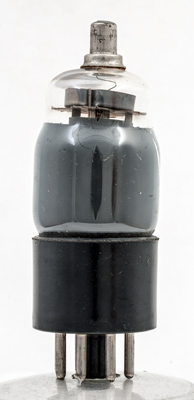

The inner coating extends all around the glass.

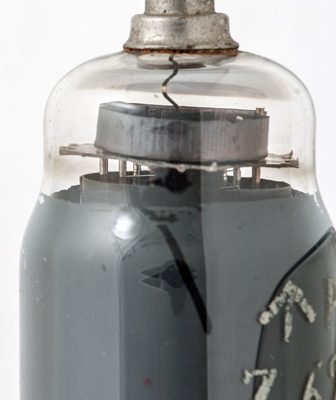

The screens and the tops of the grid supports.

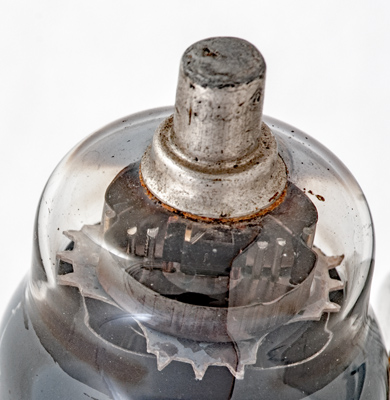

Here the control grid can be seen to be wound on copper and has radiating fins at the top.
The classic envelope is 30 mm in diameter, and excluding the IO base pins is 73 mm tall.
Reference: Data-sheet. Type Z62 was first introduced in 1939.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
a
g2
g3
-
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
6.3
0.45
300
150
-2.3
10.0
3.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 18, 2020.
shape:classic construction:pinch type:pentode age:1930.1940 base:io heater:6.3v pins:8 pin:1.- pin:2.h pin:3.a pin:4.g2 pin:5.g3 pin:6.- pin:7.h pin:8.k pin:tc.g1
