The POVT201 is the UK GPO designation for the commercial EF36 receiver pentode.
Mullard specify this device as for general purpose voltage amplification and for use in phase inverters etc. This valve was obsolete by the 1960s, and our data sheets show that the EF36 had identical characteristics and pin connections to the EF37 and EF37A. These three variants were all high gain low current voltage amplifiers from Audio to HF.

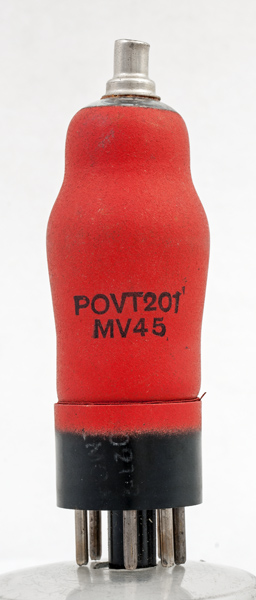

The reverse has the serial number 71760. The red paint indicates a Mullard made valve.
The classic envelope is 30 mm in diameter and, excluding the IO base pins, is 84 mm tall.
References: Data-sheet, 1040 & 1043. Type POVT201 was first introduced in 1940.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2
g3
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
100
-2
3
0.8
2.5M
1.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 18, 2020.
shape:classic construction:pinch type:pentode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.g2 pin:5.g3 pin:6.nc pin:7.h pin:8.k pin:tc.g1
