ARP13

Sensibly equivalent^¶ to:

210VPT CV1083 CV1332 NR41 VP21 VP210 VR83

Extras ▼

Cossor TNMoC The National Museum of Computing - Valves

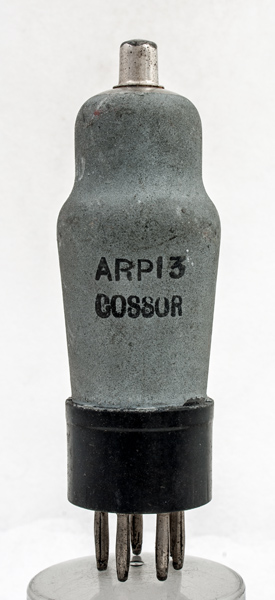

The old Army service code is ARP13 and this valve also carries the maker's name. After 1941 it was renamed the CV1332. It is a vari-μ HF pentode based on the 210VPT and the VP21.

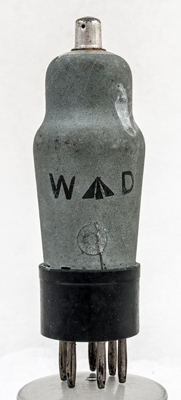

The reverse carries the up arrow and letters W D for War Department.

The classic envelope is 39 mm in diameter and, excluding the B7 base pins, is 108 mm tall.

Reference: Data-sheet.

Pin Connections

B7	1	2	3	4	5	6	7	tc
	m	g1	g3	f	f	-	g2	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	2.0	0.1	150	80	0	2.9	0.75	0.6M	1.1

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated August 03, 2020.
