6JE6C

Sensibly equivalent to:
6LQ6

Extras ▼



The 6JE6C from GE is a colour television line output valve (sweep tube) designed for the American market.

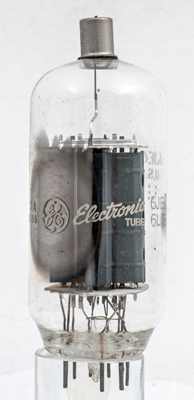

The GE logo and gettering inside the glass.

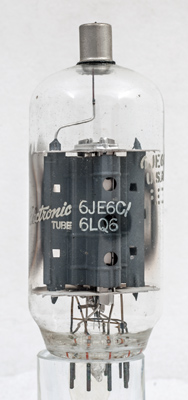

The beam plate is bright and can be seen within the carbonised anode.

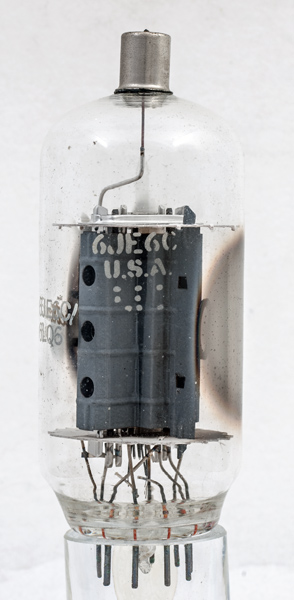

The wide glass tube envelope is 38 mm in diameter and, excluding the base pins, is  mm tall.
Reference: Data-sheet. Type 6JE6C was first introduced in 1965.



Pin Connections
B9D
1
2
3
4
5
6
7
8
9
tc
g2
g1
k
h
h
g1
g2
g3
ic
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
6.3
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 25, 2020.
