The P610 is described as a power output valve of modest current requirements providing sufficient volume for most purposes.

In addition to the commercial Type designation the P610 also appeared as the CV1666 and the GPO POVT93.

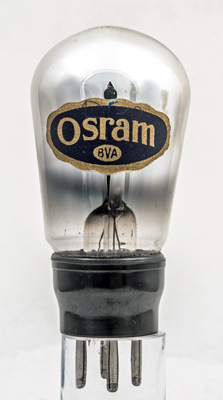

The Osram paper brand label.

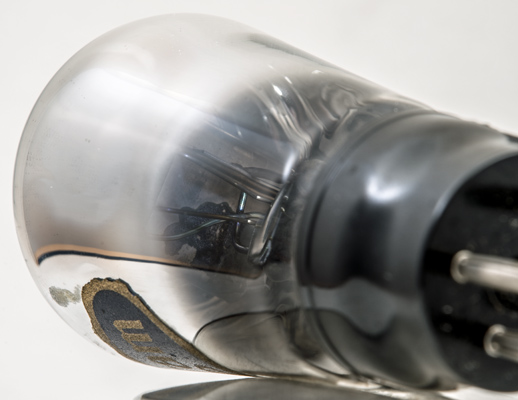

Looking under the silver gettering, the electrodes are mounted horizontally.

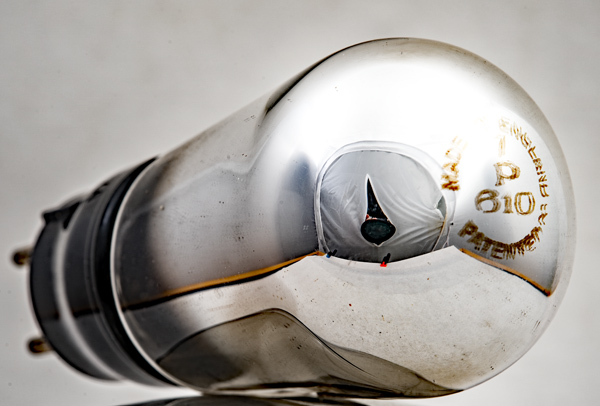

The balloon envelope is 46 mm in diameter and, excluding the B4 base pins, is 88 mm tall.

References: Data-sheet & Data. Type P610 was first introduced in 1929. See also 1929 adverts.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
