6H15N

Sensibly equivalent to:
6Н15П 6J6W 6N15 ECC91
See also:
6Н15П Box

Extras ▼



The 6H15N is really 6Н15П in Cyrillic. It is essentially a special quality 6J6 double triode. The design use was VHF signal amplification.

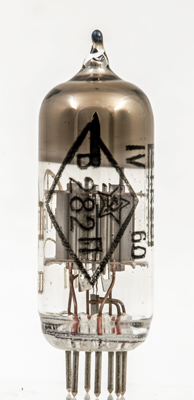

Within the diamond shape can be seen the hammer an sickle logo of the old Soviet Union or CCCP.

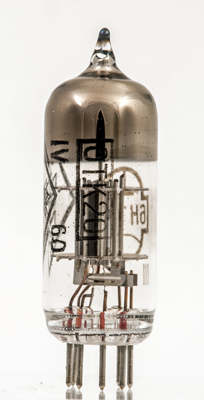

The OTK20 is a quality control indication that it has been inspected and accepted.

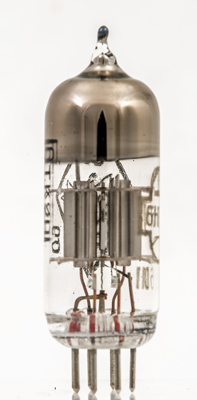

The central shared cathode.

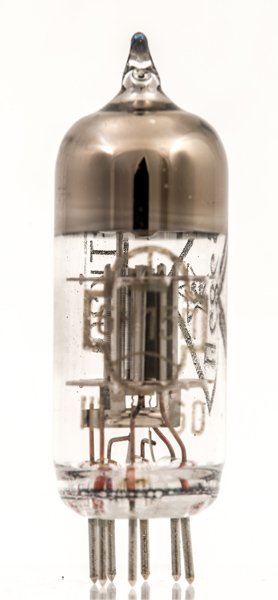

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 49 mm tall.
Reference: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
a(1)
h
h
g(1)
g(2)
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.45
100
-0.85
8.5
7100
5.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 25, 2023.
