CV5072

Sensibly equivalent to:
6CA4 EZ81

Extras ▼

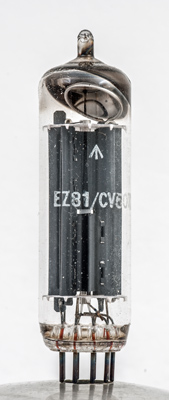

The CV5072 is the UK service designation for the commercial EZ81 and the envelope carries both Type designations.
In use the maximum reservoir capacitor would be limited to 50 µF and to prevent damage by excess current an effective series resistance of 230 Ohms is used.

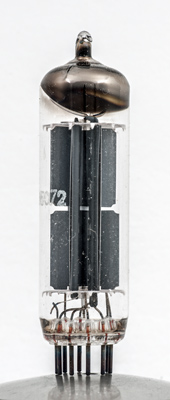

The EZ81/CV5072. The two anode plates are stitched together and at the gap between them can be seen the white of the oxide coated cathode.

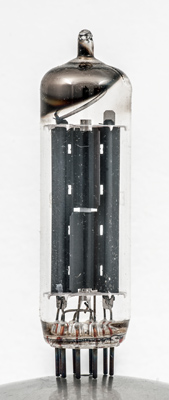

The anodes are identical with one mounted up and the other down. Each anode has two full length sections and two half length flanges to achieve the maximum area to radiate heat away..
A view of two of the half length plates coupled to the full length sections.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 70 mm tall.
References: Datasheet, 3002 & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
-
k
h
h
-
a(1)
-
-



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
1.0
350
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 23, 2018.
shape:thin.glass.tube construction:all.glass type:rectifier.fw age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(2) pin:2.- pin:3.k pin:4.h pin:5.h pin:6.- pin:7.a(1) pin:8.- pin:9.-
