CV4504

Sensibly equivalent to:
2S/141G 7435 CV469 VX7126 VX8123

Extras ▼

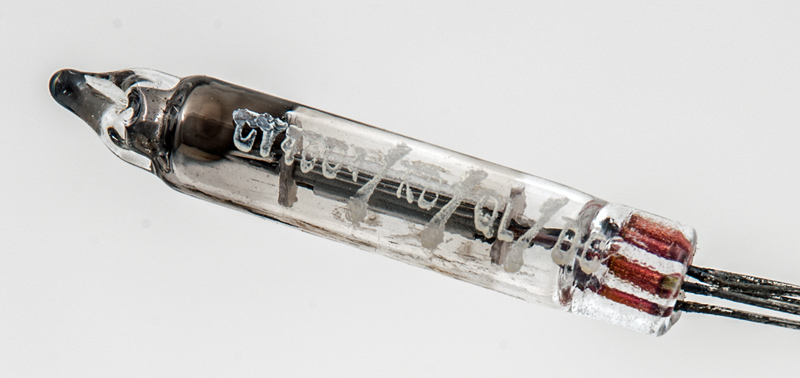

The CV4504 is an ultra miniature indirectly heated diode and a variant on the commercial EA76. These rugged diodes were originally developed for guided missile electronics. The prototypes listed in the CV specification are:- CV469, VX7126 & VX8123.

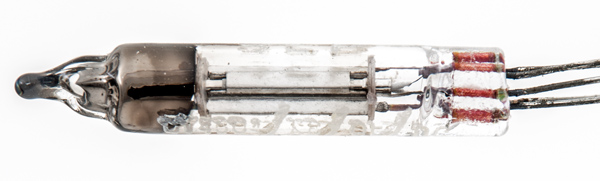

The anode is held on two supports between mica discs. The cathode tube is 1 mm in diameter and within that are the two insulated heater wires.

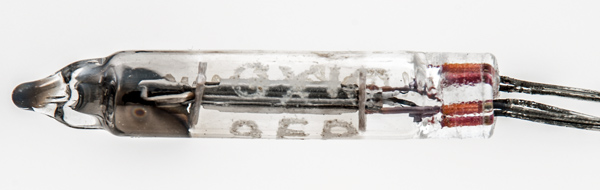

Other lettering starting with GX plus what appears to be 1C. Underneath is 9EP.
The thin glass tube envelope is 5 mm in diameter and, excluding the base wires is 28 mm tall.
Reference: Data-sheet. Type CV4504 was first introduced in 1962.



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.15
150
9.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 24, 2018.
shape:thin.glass.tube construction:all.glass type:diode age:1950.1960 base: heater:6.3v pins:5 pin:
