CV4024

Sensibly equivalent to:
12AT7WA 6060 M8162 QA2406
See also:
Pin Compatible Double Triodes

Extras ▼



The CV4024 is the UK Government designation for the Brimar 6060 and/or the Mullard M8162. These are all special quality versions of the ECC81 VHF double triode.
A version with flying leads for direct soldering into circuit is the CV4033.
It was designed for RF stages, oscillators and frequency multipliers. It now finds favour for quality audio amplifiers.

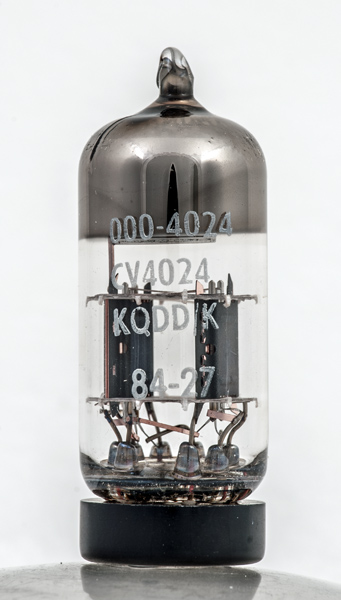

The construction is slightly different to the ECC81/12AT7.

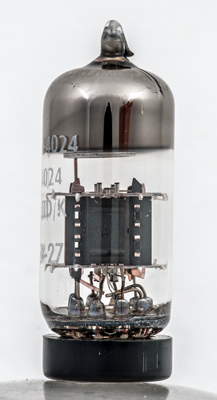

The front view of one triode section.

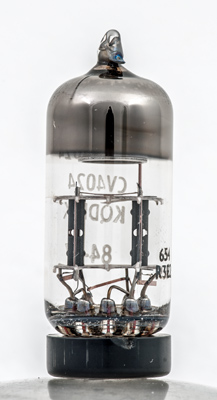

The the two triode sections. Note the absence of a central screen that would be found in VHF double triodes.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 48 mm long.
Reference: Data-sheet. Type CV4024 was first introduced in 1956. See also 1956 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a
g1
k
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
170
-1
8.5
11k
5.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 24, 2018.
