CV4014

Sensibly equivalent to:
6064 A3064 M8083
See also:
EF91 - not the valve that won the war - GEC CV4005 U78, CV4014 Z77 & CV4062 N78 Advert

Extras ▼



The CV4014 is a UK service designation for the civilian M8083 or 6064, this in turn is a special quality version of the EF91/CV138. The M8083 has a more rugged build than the EF91 and was designed for operation in areas of vibration especially aircraft.

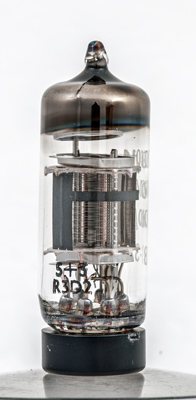

This exhibit has no obvious coating to the inner surface of the envelope and thus the inner structure is clearly visible.
The KB/K identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the K identifies the maker as ETEL, Electronic Tubes, High Wycombe.

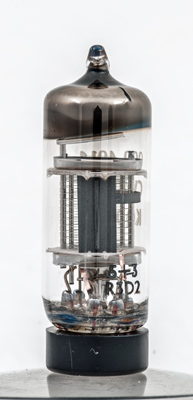

The double mica sheets confer the vibration resistance. The control grid has the copper supports.

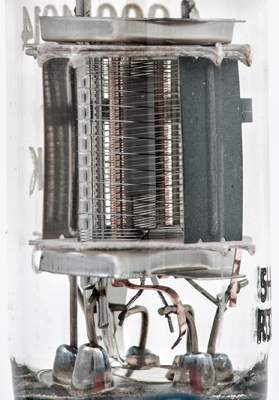

Front view of one half of the anode. The outer grids are perfectly defined. The screen grid wire sits in narrow grooves that have been opened and then pressed back over the wire. The suppressor grid winding machine clearly makes a wider groove in the support.
In this close-up the lower components can be seen. The insulated spiral heater wire and copper tape connecting electrodes to the base pins.

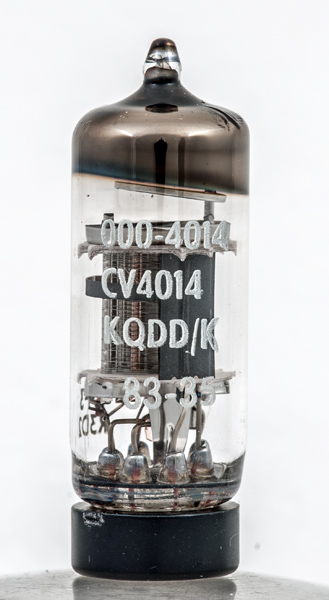

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Data-sheet & 1040. Type CV4014 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g3
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
250
-2
10
2.5
1M
7.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 02, 2024.
