E1796

Sensibly equivalent to:
KT101

Extras ▼



The E1796 is an M-OV experimental valve but the envelope also carries the Type KT101. So this could be a KT101 or it could be a variant - we have no way of knowing.
KT101 is an audio output beam tetrode. With a load of 3,000 Ω and a cathode resistor of 180 Ω the KT101 would generate 3.8 W at 12% distortion. The KT101 is also specified for use strapped as a triode.

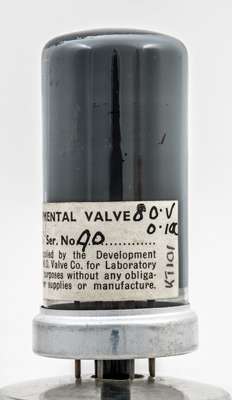

The serial number is 90 and the heater rating seems to be in the same hand and matches the KT101 that someone has added to the label.

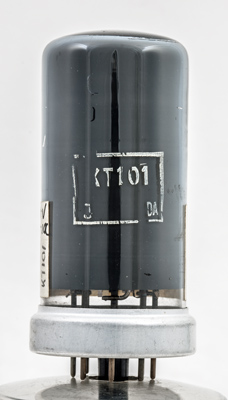

The KT101 as would be added during main production.
The wide glass tube envelope is 32 mm in diameter, and excluding the B8B base pins is 70 mm tall.
Reference: 1040.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
ic
ic
g1
k
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
80.0
0.1
175
175
-9.8
70.0
12.0
-
10.0



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
175
-7.5
120.0
-
11.5
Updated April 13, 2019.
shape:wide.glass.tube construction:all.glass type:beam.tetrode age:1940.1950 base:b8b heater:100ma pins:8 pin:1.h pin:2.a pin:3.g2 pin:4.ic pin:5.ic pin:6.g1 pin:7.k pin:8.h
