CV6066

Sensibly equivalent to:
SC1/1800
See also:
Corona Voltage Stabiliser Tubes - GEC Corona Stabilisers - GEC SC1 Corona Stabiliser - GEC Corona Stabilisers

Extras ▼



The CV6066 is the commercial SC1/1800 high voltage low current voltage stabiliser.

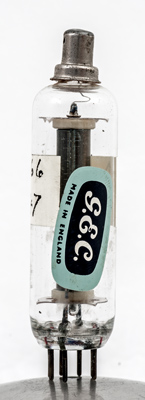

The GEC paper label.

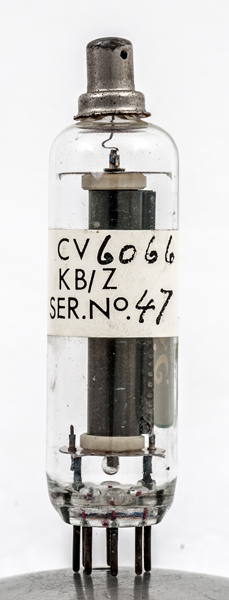

The central anode rod is sealed in glass at the cathode end.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 65 mm tall.
References: 3002.



Pin Connections
B7G
1
2
3
4
5
6
7
tc
-
-
-
-
-
-
k
a



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
1800
0.5
Updated April 19, 2019.
shape:thin.glass.tube construction:all.glass type:voltage.stabiliser age:1950.1960 base:b7g pins:7 pin:1.- pin:2.- pin:3.- pin:4.- pin:5.- pin:6.- pin:7.k pin:tc.a
