CV3512

Sensibly equivalent to:
5696 EN92

Extras ▼

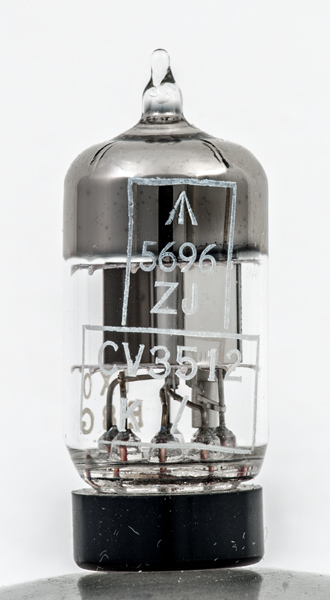

The CV3512 (commercial 5696) is a special quality industrial thyratron. It was designed for relay switching applications particularly in counter circuits and instruments. Typically the anode circuit impedance would be 5,000 Ω.
For insulation the anode lead is sheathed in ceramic down to the base pin.

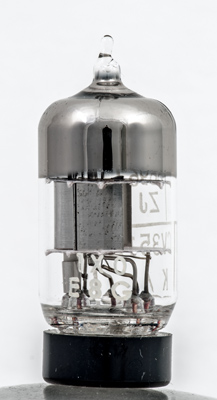

Side view.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 38 mm tall.
Reference: Datasheet.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
g2
a
g2



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
6.3
0.15
117
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 12, 2019.
shape:thin.glass.tube construction:all.glass type:thyratron age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.g2 pin:6.a pin:7.g2
