VX3192Sensibly equivalent¶ to:See also:
|
|
|

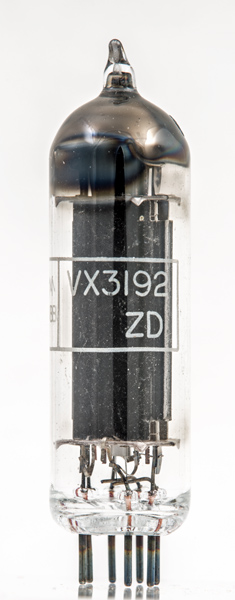

The VX3192 is a Brimar (STC) development Type. It became the CV4062.The VX3192 pentode is an audio power valve. In class AB1 a pair of valves in push pull will deliver 13.3 Watts. The input needs 30 Volts peak to peak and the anode load has to 7500 Ohms.Also the CV data-sheet specifically mentions suitability as a series pass valve in stabilised power supplies.In Class A, triode connected, the valve will generate 2.6 W at 1.4% distortion.When fitted with flying leads for direct soldering into a circuit the Type designation becomes CV4065.![](../pics/acl0234a.jpg)

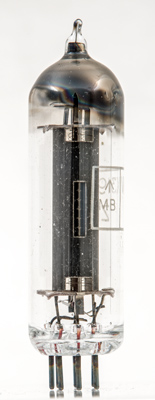

At the top all three wire grids can be seen.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 61 mm tall.References: Data-sheet & 1040. Type VX3192 was first introduced in 1952. See also 1952 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | k | h | h | a | k | g2 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | mAa | mAs | Pout | D | ![](../static/pdflogo.gif)
| 6.3 | 0.635 | 250 | 165 | 40 | 12 | 2.3W | 4.5% |
|
Updated March 17, 2021.
|
|
