A2134

Sensibly equivalent to:
CV2179 CV4062 CV4065
See also:
Series Pass Valves - Series Stabiliser Valves Advert

Extras ▼



The A2134 pentode is clearly designated as an audio power valve. In class AB1 a pair of valves in push pull will deliver 13.3 Watts. The input needs 30 Volts peak to peak and the anode load has to 7500 Ohms.
Also the data-sheet specifically mentions suitability as a series pass valve in stabilised power supplies.
In class A triode application the valve will generate 2.6W at 1.4% distortion.
The anode end view.

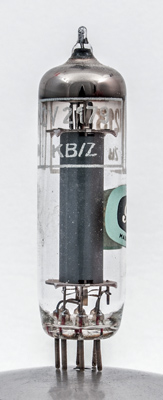

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 62 mm tall.
References: Datasheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
k
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
Pout
D
6.3
0.635
250
165
40
12
13.3W
4.5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 04, 2016.
