CV248

Sensibly equivalent to:
GS16

Extras ▼

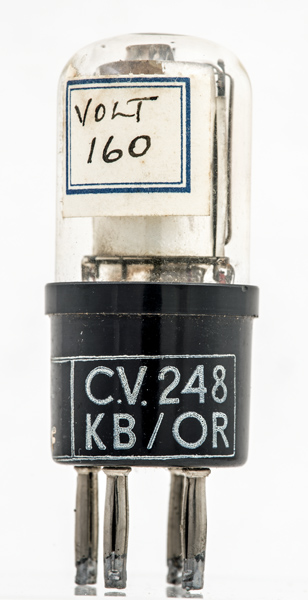

The CV248 photocell is designed to operate with 160 Volts on the anode and was based on the commercial GS16.

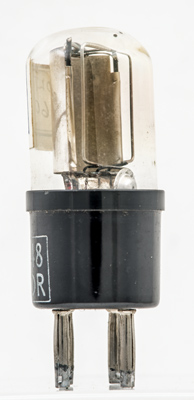

The cathode is semi-cylindrical and the anode is a rectangular wire loop.
The relative positions of the electrodes is maintained by the use of an insulating glass bead and support wires spot welded in place.
The thin glass tube envelope is 25 mm in diameter, and excluding the B4 base pins is 56 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
a
-
-
k



Absolute Maximum Operating Conditions
Light Control
Va
140
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 14, 2021.
