NR61

Sensibly equivalent to:
CV1183 W42

Extras ▼



The NR61 is a vari-μ pentode specified by the Admiralty as pattern W265. In fact this is an M-OV design known commercially as the W42. With the advent of the CV system the NR61 became known as the CV1183.

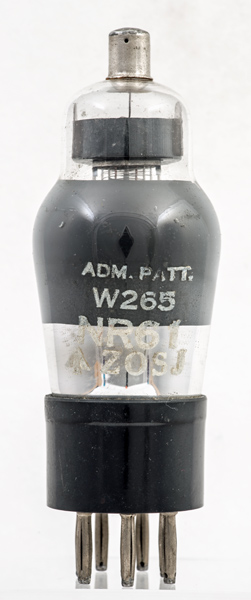

The M-OV etched ellipse contains the W42 designation. This is the original marking and the NR61 has been overprinted for the Admiralty contract.

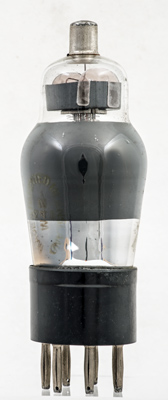

Not the greatest image of the three wire grids and the copper supports of the control grid.
The dop of the envelope showing the wire from the control grid to the top cap. The cathode tube is round.
The classic envelope is 41 mm in diameter and, excluding the B7 base pins, is 103 mm tall.
Reference: Data-sheet.



Pin Connections
B7
1
2
3
4
5
6
7
tc
-
a
g3
h
h
k
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
4.0
0.6
250
150
-3.0
7.6
1.9
1.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
