185BT

Sensibly equivalent to:
CV1980

Extras ▼

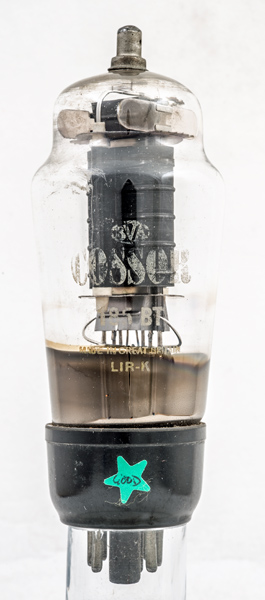

The 185BT is television line output valve.
The cathode resistor should be 160 Ω and the positive anode surge is a maximum of 8,000 Volts. The anode maximum dissipation is 25 W and the screen maximum dissipation is 5.5 Watts.

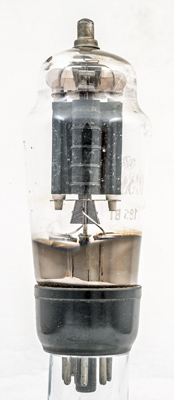

Screens top and bottom and ceramic spacer insulators on the anode supports.

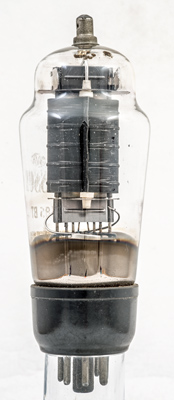

Looking along the grid axis with anode flanges for fixing and additional radiating area.
The classic envelope is 50 mm in diameter, and excluding the IO base pins is 126 mm tall.
References: 1039 Type 185BT was first introduced in 1949.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
-
g2
g1
-
h
k
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
18.0
0.45
180
180
-
